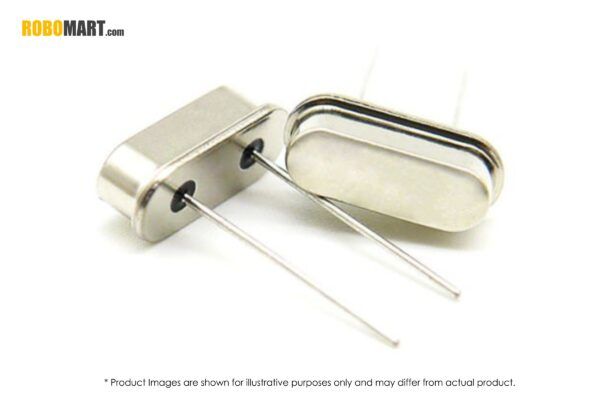

24Mhz Crystal Oscillator Half Size HC49/US Package (Pack of 5)

This is an electronic oscillator circuit. It uses the mechanical resonance of a vibrating crystal of piezoelectric material. And then create an electrical signal with a precise frequency. This frequency is often used to keep track of time to provide a stable clock signal. Technical Specification: Frequency Range: 12MHz Load Capacitance: 18pF Frequency Tolerance: ? 30ppm Frequency Temperature Stability: ?50ppm Resonance Resistance: 40ohms (max) Shunt Capacitance: <7pF Drive Level: <100?W Operating Temperature Range: -20 to 70?C Operable Temperature Range: -25 to 85?C Storage Temperature Range: -55 to 125?C Insulation Resistance: 500M? Features: Accuracy, compactness Low cost, low power consumption High-frequency generation Low phase noise High Q factor Automatic amplitude control and frequency drift SKU: RM002834 Category: DIP HC-49 Crystal Warehouse Code: R00013-S03-P01-Z01
