L293D motor control shield motor drive expansion board

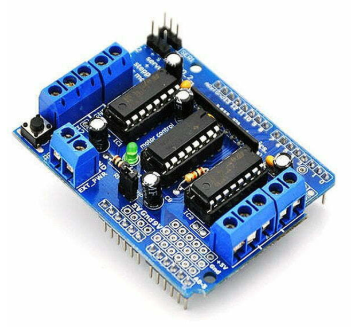

Description L293D motor control shield motor drive expansion board Overview: The L293D Motor Shield is equipped with dual L293D motor drivers and a 74HC595 shift register. This allows the shield to drive 2 Servo Motors or 2 Stepper Motors or 4 full bridge DC Motors and up to 8 half-bridge drivers. The L293D is compatible with the Arduino Uno R3 and Arduino Mega 2560. Features: • 2 interface for 5V Servo connected to the Arduino’s high-resolution dedicated timer resulting in no jitter. • Can drive 4 DC motors or 2 stepper motors or 2 Servo at a time • Up to 4 bi-directional DC motors with individual 8-bit speed selection. • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping. • Pull down resistors keep motors disabled during power-up. • 2 external terminal power interface, for separate logic/motor supplies. • Terminal block connectors allow easy hook up wires (10-22AWG) and power • Compatible with Arduino Uno R3, Arduino Mega Specification: • Power Supply : 5VDC~36VDC • 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 25V DC. • 2 x External Terminal power Interfaces • Board Size : 70x53x20mm Package includes: • 1 x L293D – Motor Drive Shield Expansion Board Compatible With Arduino Resources: • Arduino Motor Drive Shield Tutorial
