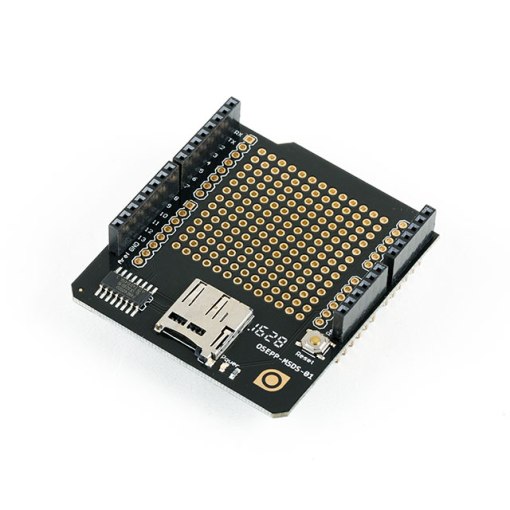

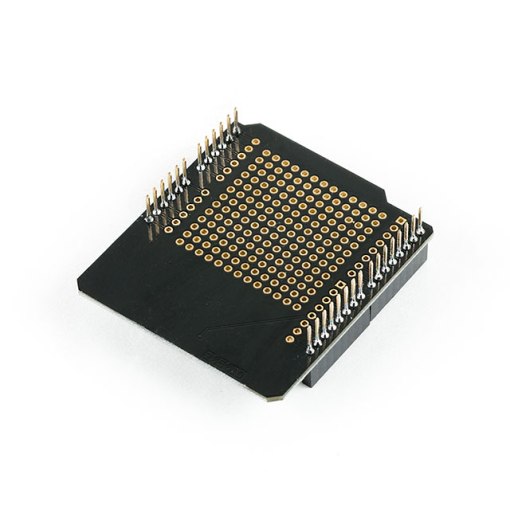

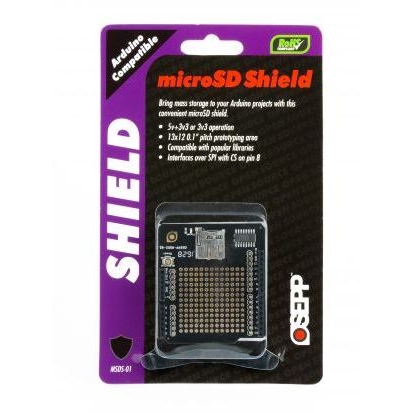

OSEPP MSDS-01 Micro SD Shield The OSEPP MSDS‑01 Micro SD Shield is a convenient Arduino‑compatible expansion shield designed to add mass storage capability to your microcontroller projects. This shield enables easy access to microSD cards over the SPI interface, allowing data logging, file storage, and retrieval in a broad range of embedded applications. It plugs directly onto Arduino and compatible boards using the standard shield form factor, simplifying installation and connection without additional wiring. Features: Integrated level shifter for 3.3V microSD compatibility with 5V Arduino logic. SPI interface using standard pins: SCK (D13), MISO (D12), MOSI (D11), CS (D8). Supports 5V 3.3V or direct 3.3V operation for versatile power options. 13×12 grid prototyping area with 0.1-inch pitch for custom additions. Pass-through headers to maintain access to all Arduino pins. Compatible with Arduino SD libraries for easy file management. Specifications: Parameter Value Supply Voltage 3.3-5VDC Interface SPI Chip Select Pin D8 Clock Pin D13 MISO Pin D12 MOSI Pin D11 Logic Levels 3.3V(withshiftingfor5V) Prototyping Area 13×12(0.1″pitch) Dimensions 60×53.4mm Applications: Data logging for environmental sensors or IoT monitoring systems. Storing configuration files or user data in embedded projects. Media storage for audio playback or image handling in robotics. Backup and transfer of program data in educational kits. Expanding storage in portable Arduino-based devices like dataloggers. Package Include: 1x OSEPP MSDS-01 Micro SD Shield. Documents: Schematic microSD Sample Code
