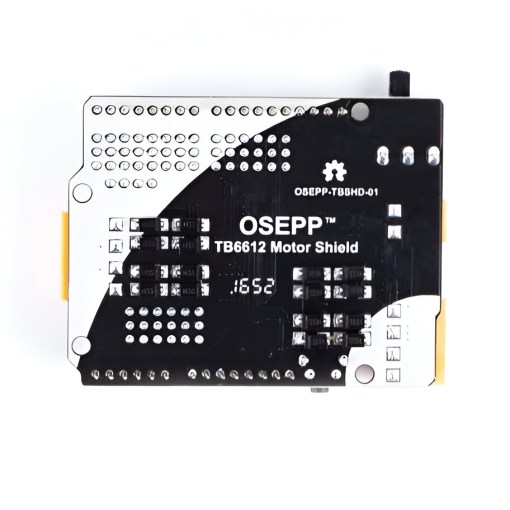

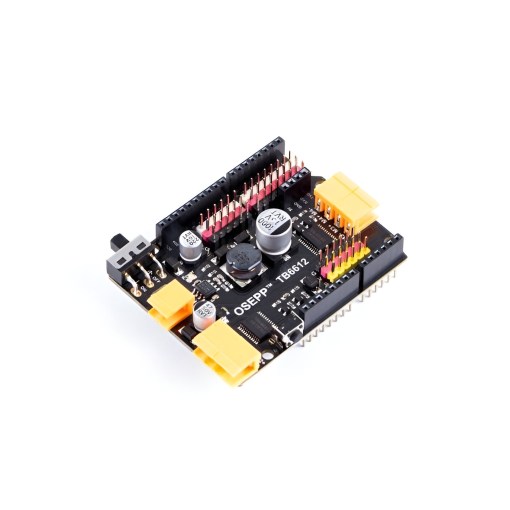

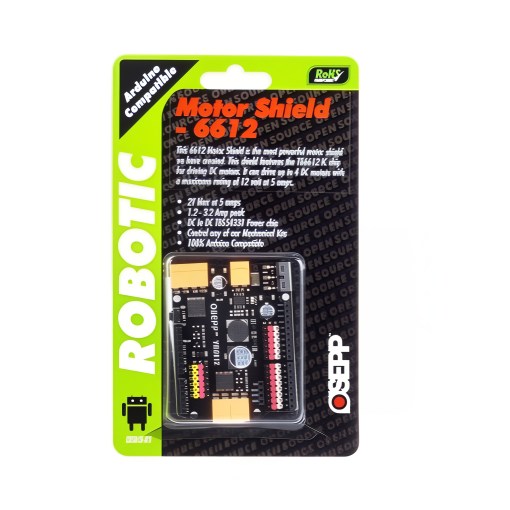

OSEPP TBSHD-01 Motor Driver Shield 6122 The OSEPP TBSHD-01 Motor Driver Shield 6122 is a powerful and reliable solution for controlling DC motors and stepper motors in Arduino-based projects. With its dual H-Bridge design, this motor driver shield can control two motors simultaneously, making it ideal for robotics, automation, and other motor-driven applications. It is designed to be stacked directly on top of an Arduino board, providing easy integration and minimal wiring. Features: Dual H-Bridge design for controlling two DC motors or stepper motors. Supports up to 2A continuous current per motor. Thermal shutdown and overcurrent protection for safety. Easy-to-stack design, compatible with Arduino boards. Provides multiple pins for connecting sensors and actuators. Specifications: Compatibility Arduino Uno and compatible boards Motor Channels 4 Max Motor Voltage 12 V Max Current 5 A Peak Current 1.2 A to 3.2 A Driver IC TB6612FNG (x2) Power IC TPS54331 Applications: Ideal for controlling motors in robotics and automation systems. Perfect for creating mobile robots, moving platforms, and actuators. Used in projects requiring precise control of DC motors or stepper motors. Suitable for DIY projects, educational applications, and prototyping. Package Include: 1x OSEPP TBSHD-01 Motor Driver Shield 6122. Documents: Schematic
