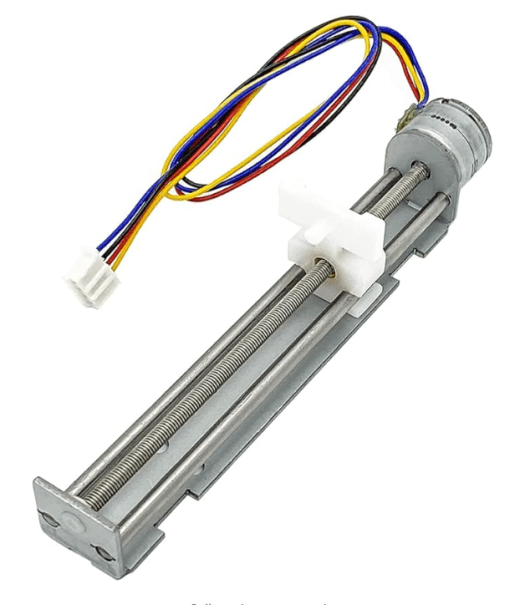

DC 5V-9V 12V 2 phase 4 wire stepper motor linear rail 90mm lifting lead screw linear stage actuator with nut slider step angle 18 degree
$62.31
$118.39
Description DC 5V-9V 12V 2 phase 4 wire stepper motor linear rail 90mm lifting lead screw linear stage actuator with nut slider step angle 18 degree Product description Specifications: Micro sliding table for DIY laser engraving machine with XY axis. Motor Type: 2 Phase 4 Wire Input voltage: DC 5V-12V / 100-800mA (the higher the voltage, the greater the force and the greater the heat). Step angle: 18 degrees. Current per phase: 800mA/phase Phase resistance: 15.5 ohms. Lead spindle length: 90 mm. Lead spindle diameter: 3mm Slider width: 15 mm. Effective stroke: 80mm Screw spacing: 0.5mm Stage dimensions: 105 x 15 x 25 mm. The speed of a straight line is maximum 25mm/s. Wiring: Blue A , Black A-, Red B , Yellow B-. Note: the stepper motor, the direct power supply is not rotatable, it must be stepper motor driver board. Search: B09BTWQPTB Tips If you want to engrave yourself, you need to modify the slider yourself, the standard slider does not use linear bearings, so the accuracy is usually unstable. Box contents: 1 x Stepper Motor
