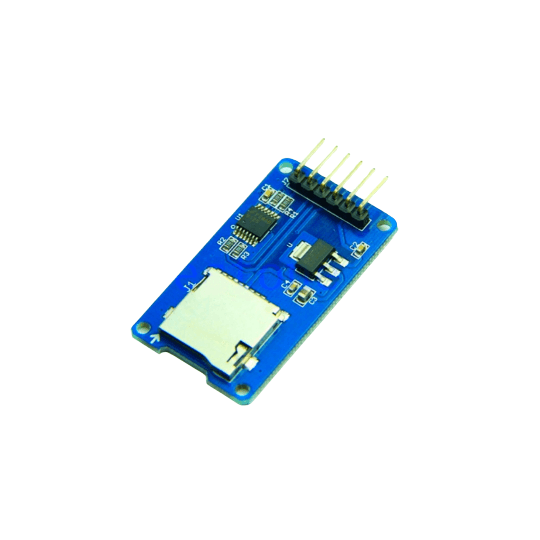

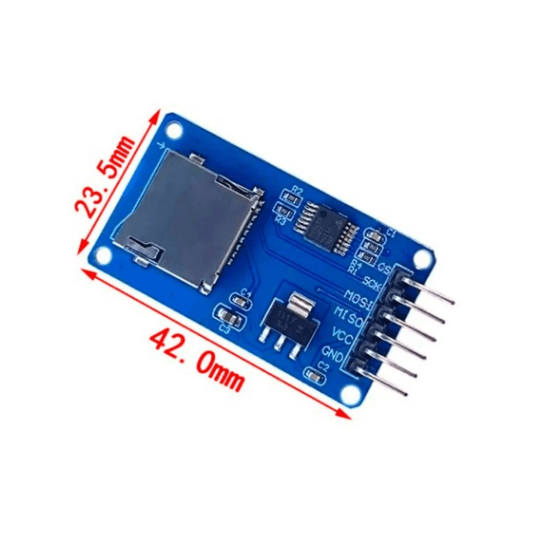

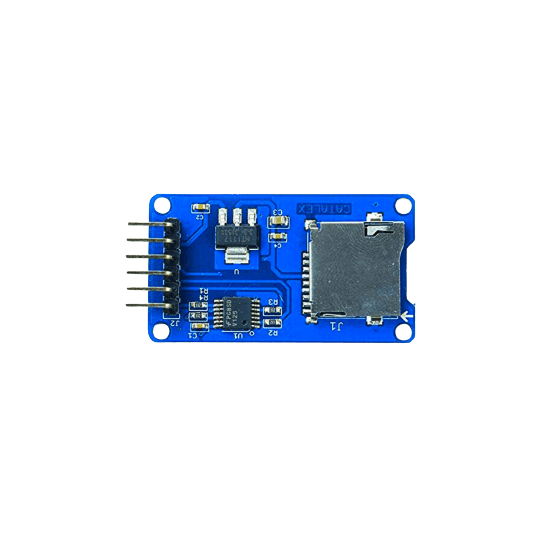

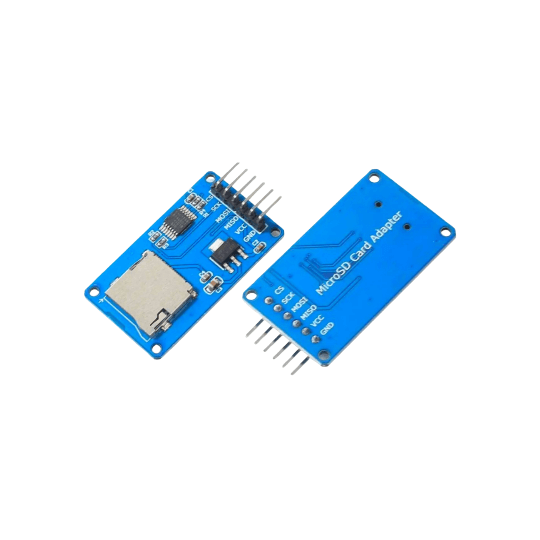

MicroSD Card Reader Module Enhance your electronics projects with the MicroSD Card Reader Module, featuring an SPI interface for seamless data storage and retrieval. Ideal for Arduino, Raspberry Pi, and advanced microcontroller applications, it ensures reliable performance for data logging, file handling, and DIY innovations. Specifications : Compatible Cards: MicroSD and MicroSDHC Interface: SPI (Serial Peripheral Interface) Operating Voltage: 3.3V and 5V (Logic Level Compatible) Input Voltage: 4.5V to 5.5V Onboard Regulator: 3.3V Voltage Regulator for SD Card Dimensions: 42mm x 24mm x 11mm Applications: Data logging, file storage, and embedded system integration for Arduino, Raspberry Pi, and other microcontrollers. Build: Compact PCB design with high-quality soldering and pre-drilled mounting holes for easy installation. Pins: CS: Chip Select SCK: Serial Clock MOSI: Master Out Slave In MISO: Master In Slave Out VCC: Power Supply Input GND: Ground
