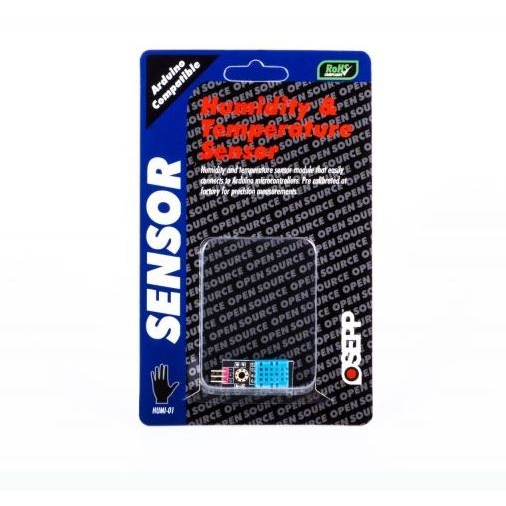

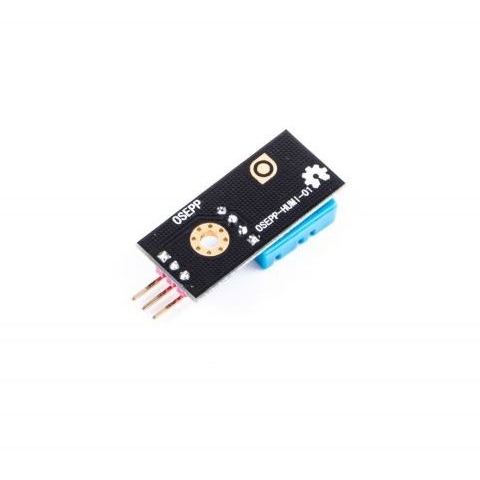

OSEPP HUMI-01 DHT11 Humidity & Temperature Sensor The OSEPP HUMI‑01 DHT11 Humidity & Temperature Sensor is a calibrated environmental sensor module that reliably measures relative humidity and ambient temperature, delivering robust performance for hobbyist and professional electronics applications. Designed around the well‑known DHT11 sensing element, this module integrates humidity and temperature sensing in a single compact package that interfaces easily with microcontrollers and development boards. The module outputs digital data via a single signal line, simplifying integration without the need for external analog‑to‑digital conversion. Features: 100% Arduino Compatible 3 pin outs: GRD (-) VCC ( ) S – Signal 20 meter signal transmission Features: Power supply voltage: 5V Temperature Range: 0-50°C Temperature Accuracy: /- 2°C Humidity Range: 20-90%RH Humidity Accuracy: /_ 5%RH Specifications: Parameter Value Operating Voltage 5VDC Standby Current 0.06mA Measuring Current 1mA Humidity Range 5-95%RH Humidity Accuracy ±5%RH Temperature Range -20-60°C Temperature Accuracy ±2°C Response Time (Humidity) <6s Response Time (Temperature) <10s Sampling Interval >2s DHT11 Dimensions 16×12.5x6mm Pin Configuration: Pin Function Type VCC( ) Power Supply 5VDC S (DATA) Digital Signal Single-wire bidirectional GND(-) Ground Ground Applications: Environmental monitoring and data logging systems. Home automation and HVAC control. Weather station projects. Classroom and educational electronics. IoT sensing nodes and embedded devices. Package Include: 1x OSEPP HUMI-01 DHT11 Humidity & Temperature Sensor Module. Documents: DHT11 Technical Data Sheet V.2 Schematic DHTlib Sample Codes V.2
