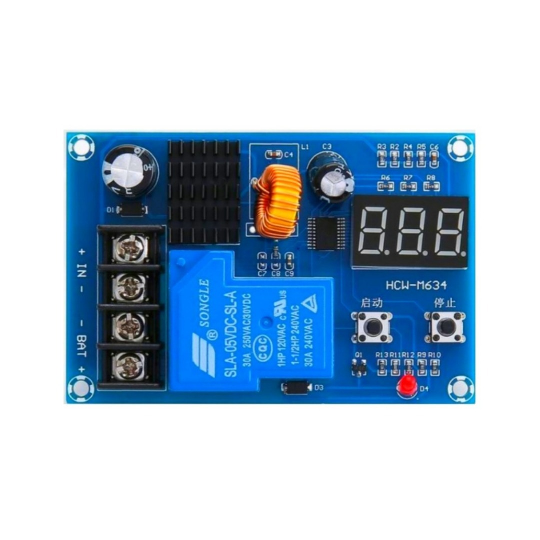

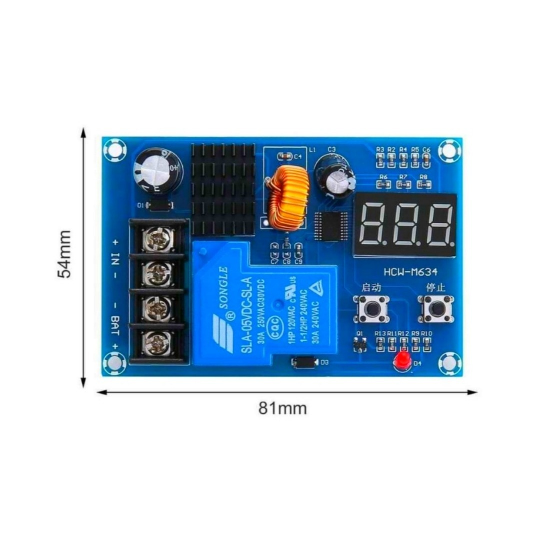

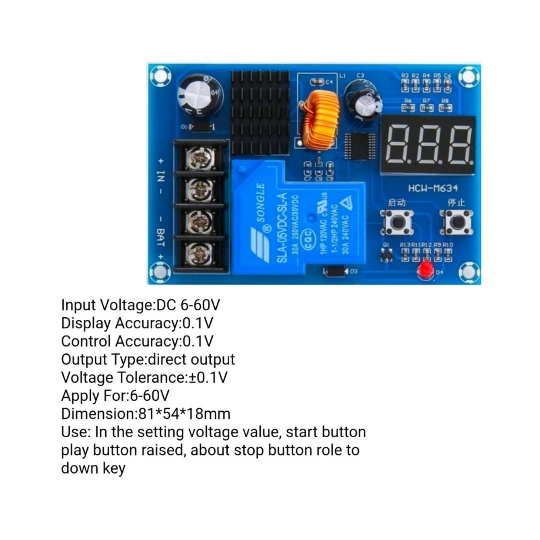

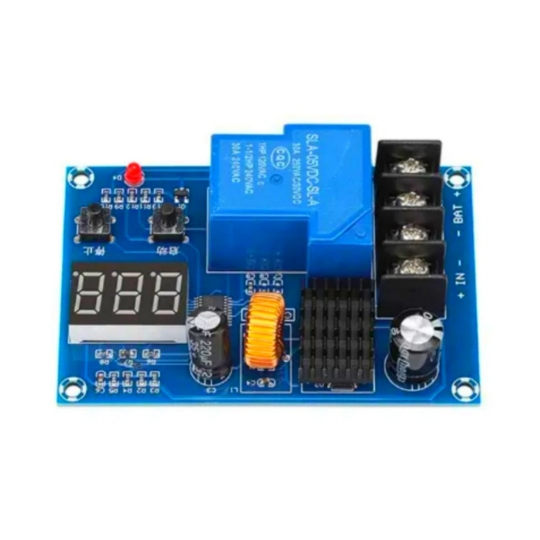

HCW-M634 Battery Over Charging Cutoff Module | XH-M604 / HCW-M634 Battery Over Charge Protection Module HCW-M634 Battery Charger Control Module with Display is suitable for 6-60V battery charging control, can be set free to start charging voltage and stop charging voltage. In the IN input charger 660V voltage, in the OUT terminal battery, for example, set 12V start 15V stop when the voltage is below 12V when the relay is closed to the charger charging voltage to the battery, when the charge voltage is greater than 15V Relay off to stop charging, can be used in household chargers, solar, wind turbines Specifications • Input Voltage:DC 6-60V • Display Accuracy:0.1V • Control Accuracy:0.1V • Output Type:direct output • Voltage Tolerance:±0.1V • Apply For:6-60V battery • Dimension:81*54*18mm Input charger 6-60v in the IN end, connect storage battery in OUT end. for example, setting the 12V start ,and 15V stop, when the voltage is less than 12V, The relay closes and send the charging voltage of the charger to the battery, When the voltage is higher than 15V, the relay disconnect and stop charging discharges. Use: In the setting voltage value, start button play button raised, about stop button role to down key 1. Set the start voltage: Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value. 2. Set Stop voltage: Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value. 3. Setting Error: Energized state while holding down the start / stop button, digital display 888, which is the factory setting
