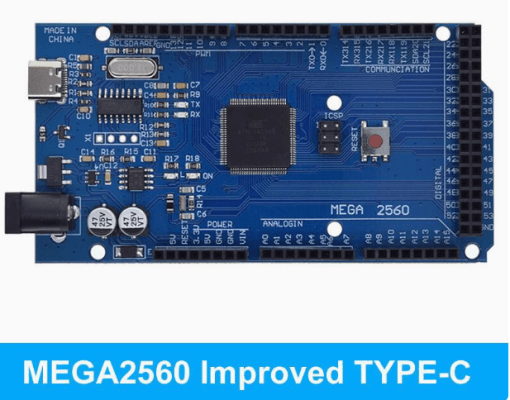

MEGA2560 development board R3 ATMEGA2560 CH340G open source module TYPE-C interface
$ 12.03
& Free Shipping: UK £40 | EU £50 | Intl £55Description MEGA2560 development board R3 ATMEGA2560 CH340G open source module TYPE-C interface Microcontroller Genuine ATmega2560 CH340G replaces the Atmega16U2(USB Chip), faster and cheaper. Operating Voltage 5V Input Voltage(recommended) 7-12V Digital I/O Pins 54(of which 14 provide PWM output) Analog Input Pins 16 DC Current per I/O Pin 40Ma Flash Memory 256KB of which 4 KB used by the bootloader DC Current for 3.3 V Pin 50 Ma SRAM 8 KB EEPROM 4KB Clock Speed 16MHz Size: 101.6mm(L) * 53.34mm(W
