Cytron MDS40B Smart Drive DC Motor Driver 40Amp 10V-45V

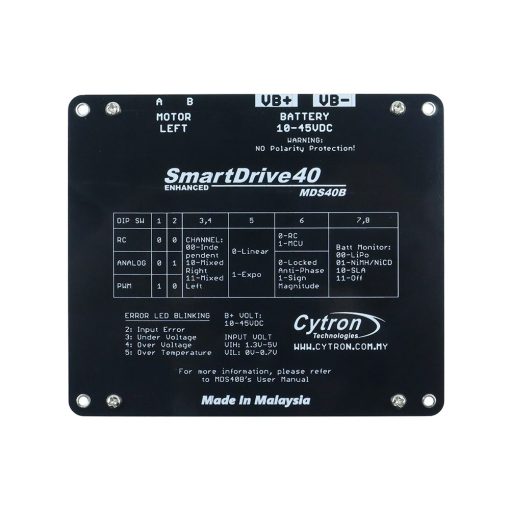

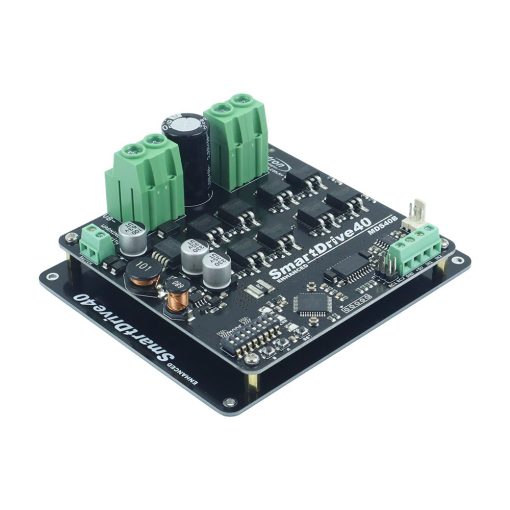

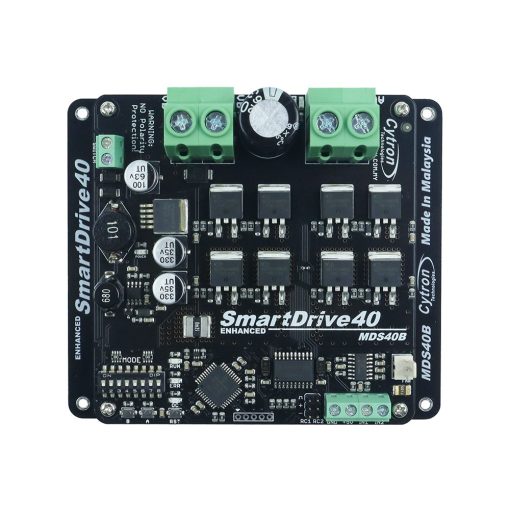

Cytron MDS40B Smart Drive DC Motor Driver 40Amp 10V-45V The Cytron MDS40B is an enhanced motor driver designed to control medium to high-power brushed DC motors. Capable of driving motors with a voltage range from 10V to 45V, it supports continuous currents up to 40A and peak currents up to 80A (for brief periods). The driver features advanced smart capabilities, making it ideal for robotics and other motor-driven applications. Equipped with MOSFETs switched at 16 kHz, the MDS40B ensures quiet operation. It also includes a microcontroller that manages key functions such as current limiting, thermal protection, and multiple input modes. The driver’s versatility allows users to control motors using RC signals, analog input, PWM, or serial communication, making it highly adaptable to different use cases. The driver is built with safety in mind, offering multiple protection mechanisms such as under-voltage and over-voltage indicators, over-temperature protection, and an input error detection system. These features enhance the reliability of the driver, making it a robust choice for demanding applications. Features: Bi-directional control for dual brushed DC motor. Support motor voltage from 10V to 45V. Maximum current up to 80A peak (1 second), 40A continuously. On board MOSFETs are switched at 16 KHz for quiet operation. Battery low voltage indicator. Battery over voltage indicator. Thermal protection. Multiple input modes: RC, Analog, PWM, Simplified Serial and Packetized Serial. On board push buttons for fast test and manual operation. No polarity protection for V motor. Board Layout: Label Function A Power Supply Terminal Block B Motor Terminal Block C Motor LED Indicator D Fan Input Pin E Analog/PWM/Serial Input Terminal Block F RC Input Pin G Reset Button H Motor Test Button I Motor Test Button J Run LED K Error (ERR) LED L Mode Selection DIP Switch M Power Switch Terminal Block Error LED: Number of Blinks Error Description Off No Error No error has been detected. 2 Input Error Invalid or no input detected. 3 Under Voltage The battery voltage is low. 4 Over Voltage Supply voltage is over the limit. MDS40B will not operate. 5 Over Temperature Board temperature is high. Analog/PWM/Serial Input Terminal Block: No Pin Name Description 1 GND Ground 2 5V 5V output. Do not connect to another 5V source. 3 IN1 Input 1 4 IN2 Input 2 Specifications: Parameter Min Max Unit Input Voltage (Motor Supply): 10 45 V Maximum Continuous Motor Current:              – 40 A Peak Motor Current (1 second): – 80 A Logic Input High Level (VIOH): 1.3 5 V Logic Input Low Level (VIOL): 0 0.7 V 5V Output Current: – 500 mA Dimension: Power Supply: Enhanced SmartDrive40 supports input voltage ranges from 10V to 45V. The recommended power sources are: 9–18*cells NiMHor NiCd battery. 3–6**cells LiPo or Li-Ion battery. 10V–45Vsealed lead acid battery. 10V–45Vpowersupply (Must be in parallel with a battery with same voltage). NOTE: If a power supply that cannot sink current is being used (example: bench top and AC to DC switching power supply), the input voltage will rise when the driver is regenerating (motor is slowing down). Thus, it is important to connect a battery with same voltage in parallel with the power supply to absorb the current generated by the motor. Else, the input voltage might rise to a level where Enhanced SmartDrive40 will be destroyed permanently or the power supply trigger protection mode. Input Mode:     Applications: Robotics and Automation. Electric Vehicle Drive Systems. DC Motor Control Projects. High Power Motor Control Applications. Differential Drive Robotics. Package Contents: 1x Cytron MDS40B 1x 2510 PCB Connector – 3 Ways (Female) 3x 2510 Terminal Pin Datasheet:  MDS40B User’s Manual Certificate: MDS40B Official Reseller: Makers Electronics
