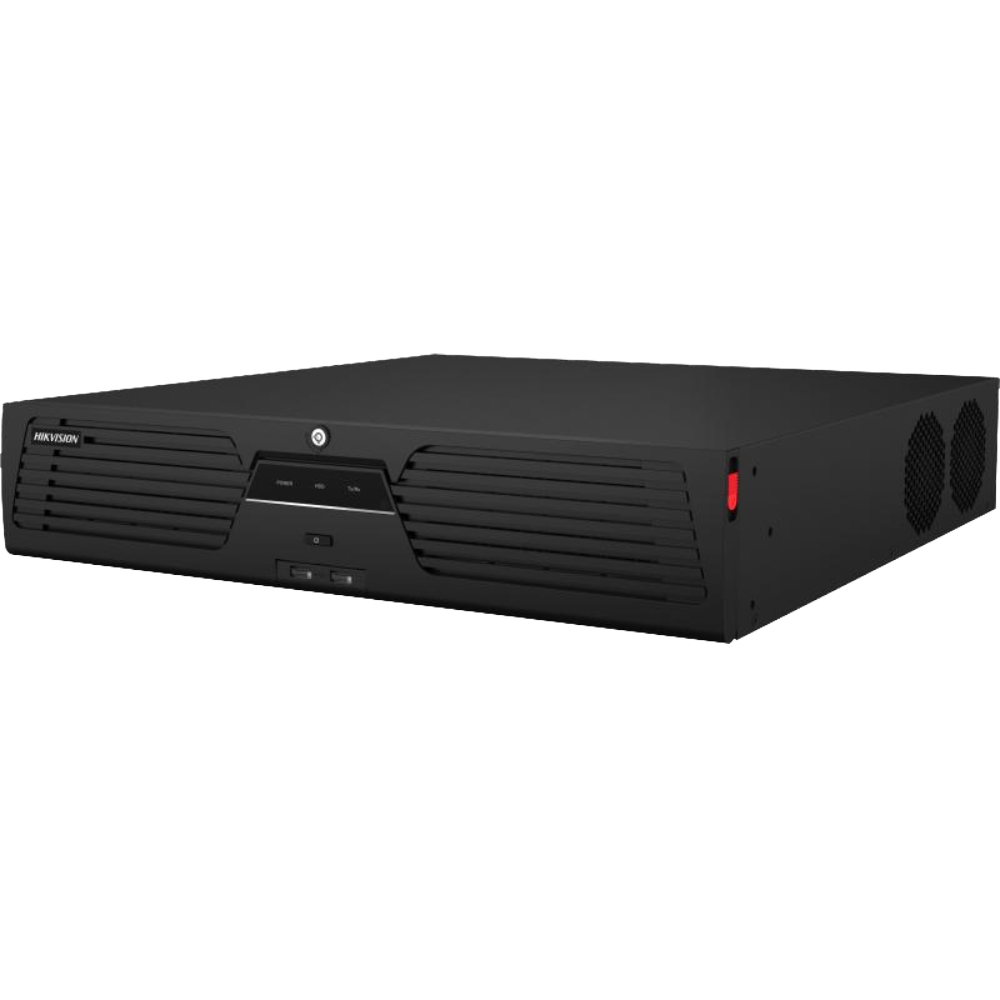

Hikvision iDS-9632NXI-P8 DeepinMind Pro NVR

Specification Intelligent Analytics AI by NVR – Facial recognition, perimeter protection, video structuralization, AcuSearch AI by Camera – Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA Engine 1 GPU Engine, only for AcuSeek and OVD 2 GPU Engines, each GPU engine can run an intelligent algorithm, engine mode is adjustable,performance of each GPU engine (choose 1 from 4): Facial recognition: 8-ch (4MP) video target capture or 32-ch image comparison Perimeter prevention: 12-ch (2MP) video analysis or 32-ch image analysis Video Structuralization: 8-ch (2MP) video structured analysis AcuSearch: support 16-ch (2MP) by NVR Note: To enable AcuSeek, at least one engine must be enabled in AcuSearch mode. Facial Recognition Facial Detection and Analytics – Face picture comparison, human face capture, face picture search Face Picture Library – Up to 32 face picture libraries, up to 100,000 face pictures in list library Face Picture Comparison (Captured from Camera) 64-ch; (32-ch for each GPU engine); Comparison speed: 32 pictures per second Facial Detection and Analytics Performance – 24-ch(2MP-8ch./4MP-8ch./8MP-4ch. face pictures captured by NVR ) AcuSearch By Camera All channels,up to 600,000 targets/day The camera should enable AcuSearch function By NVR Up to 32ch-2MP/16ch-4MP/8ch-8MP normal IP camera access to achieve AcuSearch.(2 GPU engines for target capture, 1 GPU engine for AcuSearch modeling) AcuSeek Performance – The NVR supports 16ch-2MP/8ch-4MP/4ch-8MP normal IP camera access to achieve AcuSeek.(1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling,1 GPU engine for AcuSeek modeling) If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 600,000 targets/day. Search Language – English Perimeter Protection By NVR – Perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP. 1 GPU engine for live video analysis, 1 GPU engine for lager model algorithm secondary analysis, capable of secondary analysis is 2 events/s) Perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP By Camera – Perimeter protection powered by Large Model with AcuSense cameras: All channels Video Structuralization Structured Analysis 16-ch 2 MP 12-ch 4 MP 6-ch 8 MP ANPR By Camera – All channels Vehicle Attributes – Vehicle brand, vehicle color, vehicle type Plate Attributes – Plate number, license plate color, license plate type Video and Audio IP Video Input 32-ch Up to 32 MP resolution *: NVR supports up to 8-ch 32 MP/24 MP IP video inputs. Incoming Bandwidth – 320 Mbps Outgoing Bandwidth – 400 Mbps HDMI 1 Output – 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI 2 Output – 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p. VGA 1 Output – 1920 × 1080/60Hz VGA 2 Output – 1920 × 1080/60Hz Video Output Mode – HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output CVBS Output – 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output – 2-ch, RCA (Linear, 1 KΩ) Two-Way Audio – 1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding Format – H.265/H.265 /H.264/H.264 Decoding Capability – 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) Synchronous Playback – 16-ch Recording Resolution – 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF Network Remote Connection – 128 Network Protocol – TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP API – ONVIF (profile S/G); SDK; ISAPI Compatible Browser – IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Interface – 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID Type – RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Ctrl 12V – Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V – 12 VDC, 1 A power output SATA – 8 SATA interfaces; 3.5-inch HDD eSATA – 1 eSATA interface Capacity – Up to 20 TB capacity for each HDD Serial Interface – 1 RS-232, 1 RS-485 (full-duplex) USB Interface – Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Alarm In/Out – 16/9 General GUI Language – English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian,Hebrew,Farsi,Azeri,Burmese Power Supply – 100 to 240 VAC, 50 to 60 Hz Consumption – ≤ 50 W (without HDD) Working Temperature – -10 to 55°C (14 to 131° F) Working Humidity – 10 to 90% Dimension (W × D × H) – 442 × 540 × 88 mm (17.4″ × 19.6″ × 5.8″) Weight – ≤ 8 kg (without HDD, 27.6 lb.) Certification Obtained Certification – CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA CE – EN 55032:2015 A1:2020, ENIEC61000-3-2:2019 A1:2021, EN 61000-3-3:2013 A1:201 9, EN 50130-4:2011 A1:2014, EN 55035:2017 A11:2020 Smart Engine Unit GPU Number – 3 Module Memory – 8GB Available Model iDS-9632NXI-P8(STD) iDS-9632NXI-P8(NEU)
